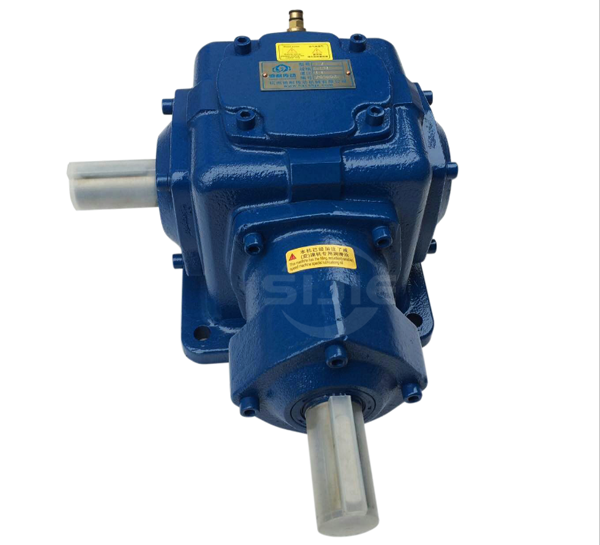

SJ-T2 Bevel Gearbox

SJ-T2 Bevel Gearbox

1. Model: SJ-T2
2. Gearing Type: Spiral Bevel Gear
3. Gear Ratio: 1:1, 2:1, 3:1, 4:1, 5:1
4. Efficiency: 95%
5. RPM Range: 10 rpm – 1450 rpm
6. Torque Range: 11.6 N.m – 13 N.m
7. Power Range: 0.014 kw – 1.79 kw
8. Drive Shaft: 2 way, 3 way, 4 way


Inquiry

SJ-T2 Bevel Gearbox Detailed Information:
1. Model: SJ-T2
2. Gearing Type: Spiral Bevel Gear
3. Gear Ratio: 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1
4. Efficiency: 95%
5. RPM Range: 10 rpm – 1450 rpm
6. Torque Range: 11.6 N.m – 13 N.m
7. Power Range: 0.014 kw – 1.79 kw
8. Drive Shaft: 2 way, 3 way, 4 way
9. Noise Level: less than 80dB
10. Temperature Level: less than 50 ºC
11. Work Temperature: -20ºC~+80ºC
12. Rotate Direction: clockwise, anti-clockwise

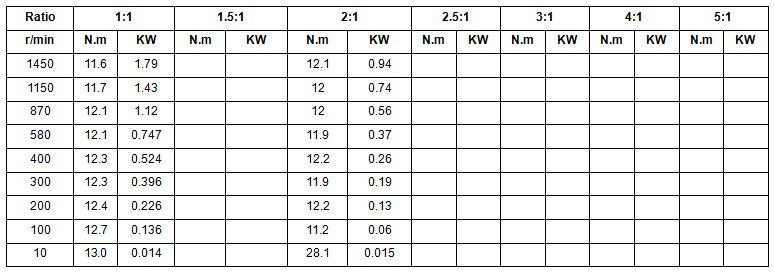

SJ-T2 Bevel Gearbox Specification:

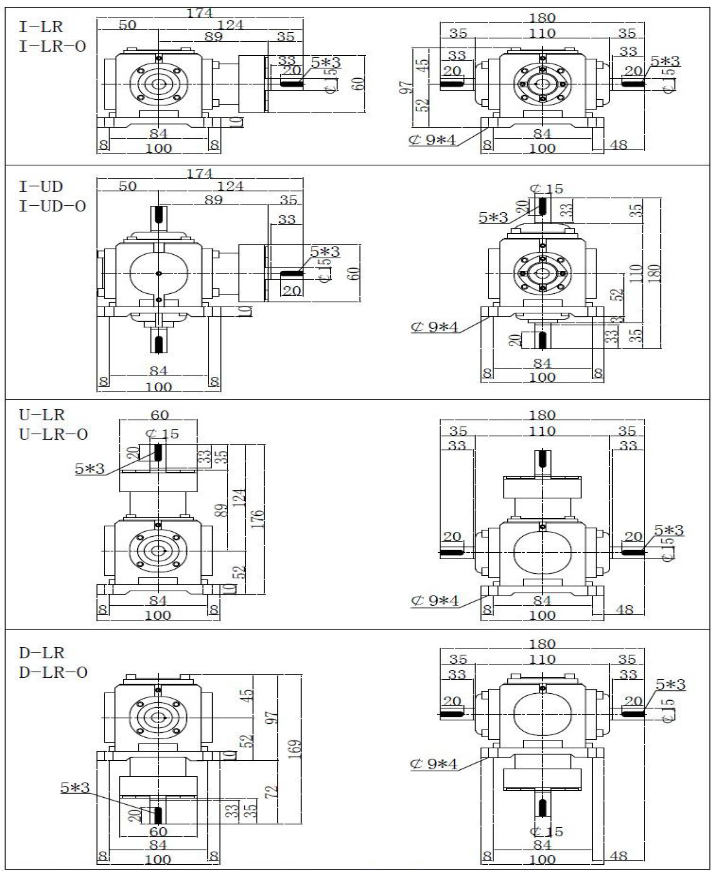

SJ-T2 Bevel Gearbox Dimensions:



SJ-T2 Bevel Gearbox Ordering Information:



1: Bevel Gearbox Brand
SJ: “SIJIE” brand bevel gearbox

2:  Gearbox base NO.
T2:  Gearbox base NO.
Before selecting gearbox base NO. please check above SJ-T2 Bevel Gearbox Specifications

3:  Gear Ratio
1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1

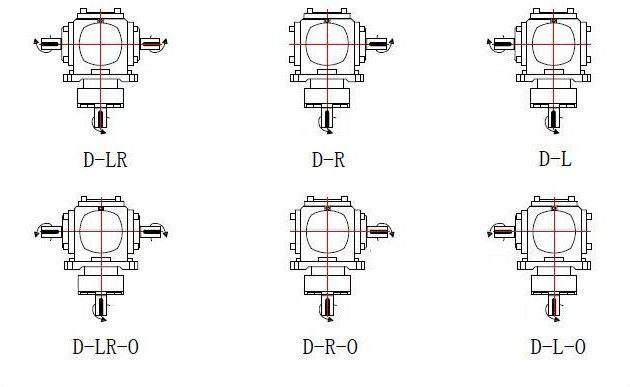

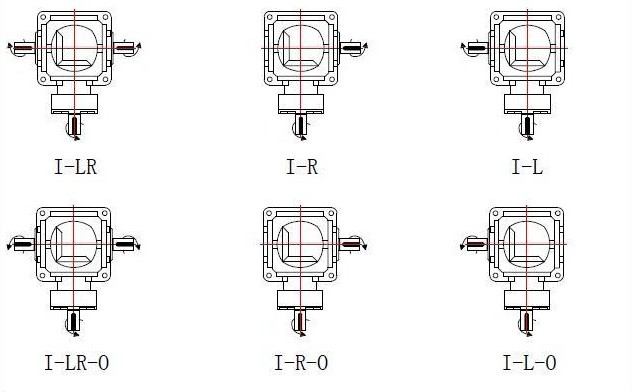

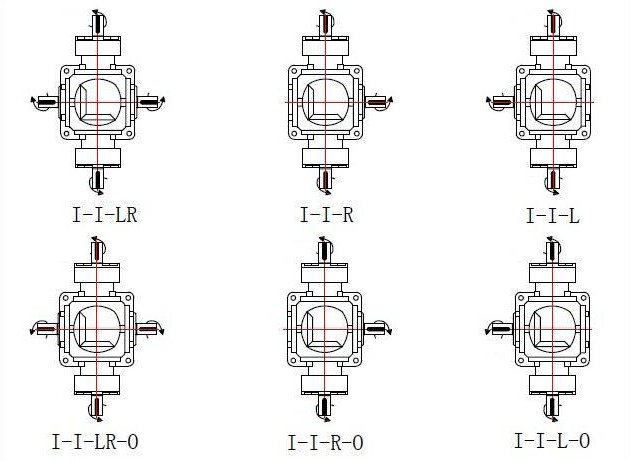

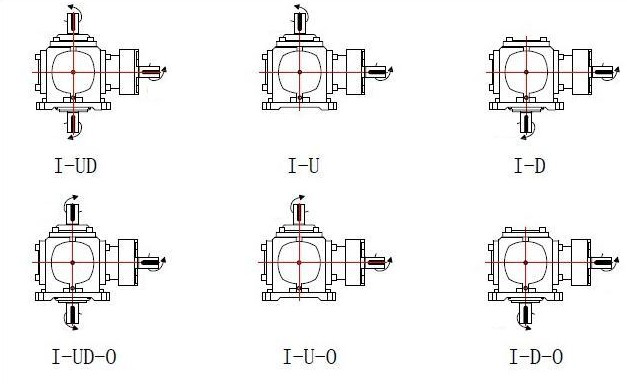

4: Transmission Directions Code

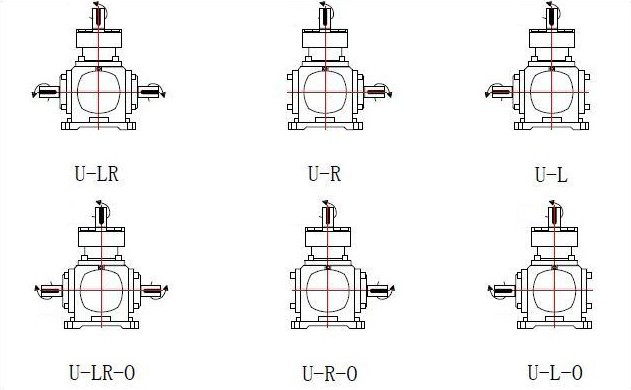

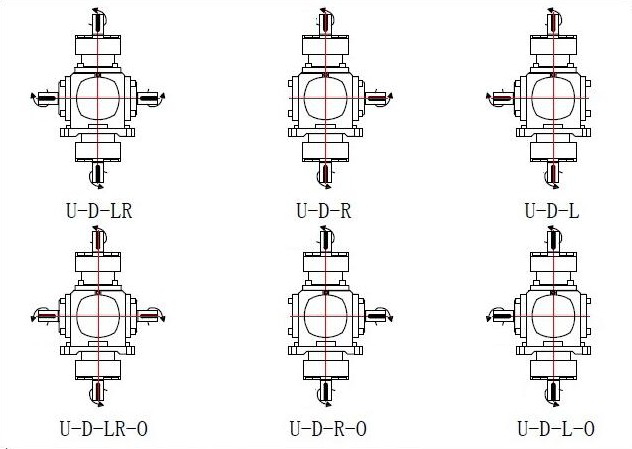

There are 42 type transmission directions code for customers selection, please check below I-LR(O) series, I-UD(O) series,
U-LR(O) series, D-LR(O) series, I-I-LR(O) series, I-I-UD(O) series, U-D-LR(O) series transmission directions code.

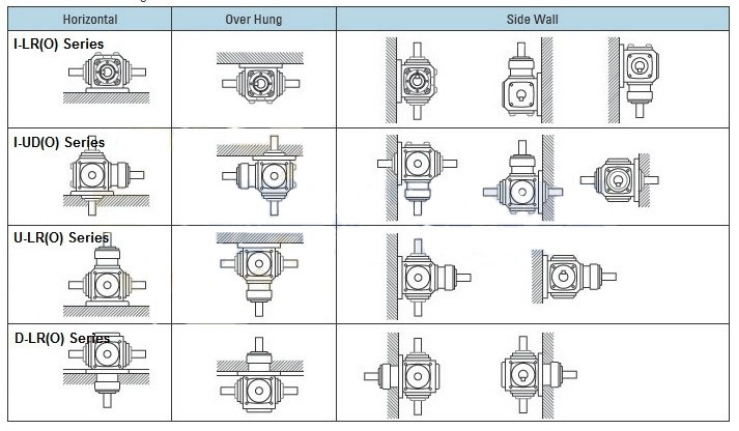

5: Mounting Position

A: Horizontal Mounting Position

B: Over Hung Mounting Position

C: Side Wall Mounting Position
